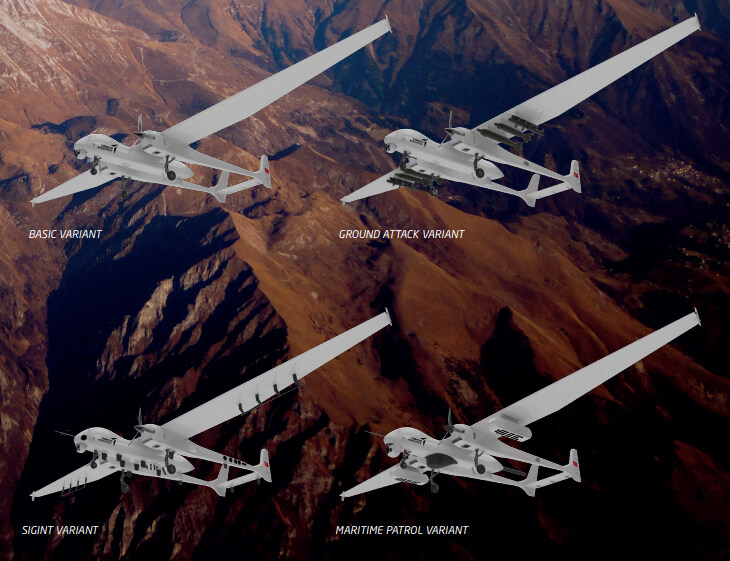

AKSUNGUR is a Medium Altitude Long Endurance (MALE) class UAV System, capable to perform day and night Intelligence, Surveillance and Reconnaissance (ISR) and strike missions with EO/IR, SAR and SIGINT payloads, and a variety of air to ground weapons. AKSUNGUR is powered by two PD-170 twin-turbocharged diesel engines enabling long endurance operations up to 40,000ft.
AKSUNGUR can carry a total of 24 MAM-L ammunition at the same time thanks to its 6 stations. With this ammunition load, the duration of AKSUNGUR in the air is 12 hours. AKSUNGUR can also carry 4 Teber-81 or 2 Teber-82 ammunition. In this way, AKSUNGUR has a significantly improved ammunition capacity compared to the previously developed ANKA UAV / SİHA. Thanks to this capacity, AKSUNGUR will alleviate the load on fighter aircraft such as F-16 and F-4.
AKSUNGUR will be made available to the Turkish Armed Forces and other potential customers in 2020.
SYSTEM FEATURES
– Fully autonomous operation
– Dual reduundant automatic flight control system
– Dual redundant automatic take-off and landing system
– Dual redundant electrical power generation system
– Dual redundant digital datalinks with encryption
– DO-178B compliant software
– DO-254 compliant hardware
– GCS and datalink compatibility with existing ANKA UAV systems
– Ice protection system (optional)
– Beyond Line of Sight (BLOS) operation flexibility with SATCOM (optional)
PAYLOAD OPTIONS
IMAGE INTELLIGENCE PAYLOADS
• EO/IR/LD/LRF Camera
• SAR/GMTI-ISAR
• Wide Area Surveillance Camera
SIGNALS INTELLIGENCE (SIGINT) PAYLOADS
• COMINT/DF
• ESM/ELINT
MARITIME PATROL PAYLOADS
• Sonobuoy Pod
• MAD Boom
• SAR/GMTI-ISAR
• Automatic Identification System
COMMUNICATION PAYLOADS
• SATCOM
• Personnel Locating System (PLS)
• V/UHF Radio Relay
• Airborne Communications Node Pod
WEAPONS OPTIONS
• 3 hardpoints on each wing with
500 kg, 300 kg and 150 kg capacities
• TEBER-81 (Laser Guided Mk-81)
• TEBER-82 (Laser Guided Mk-82)
• LUMTAS
• MAM-L
• Cirit
• MAM-C
• HGK-3 (Precision Guidance Kit)
• KGK (82) (Wing Assisted Guidance Kit)
• Small Diameter Bomb
TECHNICAL SPECIFICATIONS
Engine Type: PD-170 Dual Turbo Diesel
Engine Power: 2×170 HP (SL, ISA)
Wing Span: 24 m
Max. Takeoff Weight: 3300 kg
Ground Attack/Maritime Mission: 12 hours at 25kft with 750 kg
SIGINT Mission: 24 hours at 35kft with 150 kg P/L
Source: SavunmaSanayiST.com
